This is a set of authentic 16-band vocoders and dedicated oscillators that work as custom effects for the NTS-1.
Connect a microphone as a modulator to the NTS-1, and make the oscillator sound while you speak to create a cool robot voice.

You can use the LINE input through an amplifier, or even turn up the vocoder's input gain and use a dynamic mic for a robot voice!

Download Vocoder for NTS-1 DEMO Ver(.zip)

Try the free demo version here first!
The demo version deactivates the vocoder after 3 minutes, but you can still try out all the features.

To purchase the official version without restrictions, click here.
(Download information will be provided in an email sent to you after your purchase.)

For GMX Mail users
We are experiencing a problem were sending from the DOTEC-AUDIO mail server to GMX Mail will result in an error, so please use a different address such as Gmail when purchasing.
If you do not receive an email after your purchase, please notify us at support@dotec-audio.com or DOTEC-AUDIO's facebook page.

1．Follow the instructions included in the demo file to install custom effects (oscillator and vocoder) on the NTS-1.

2. Connecting the units

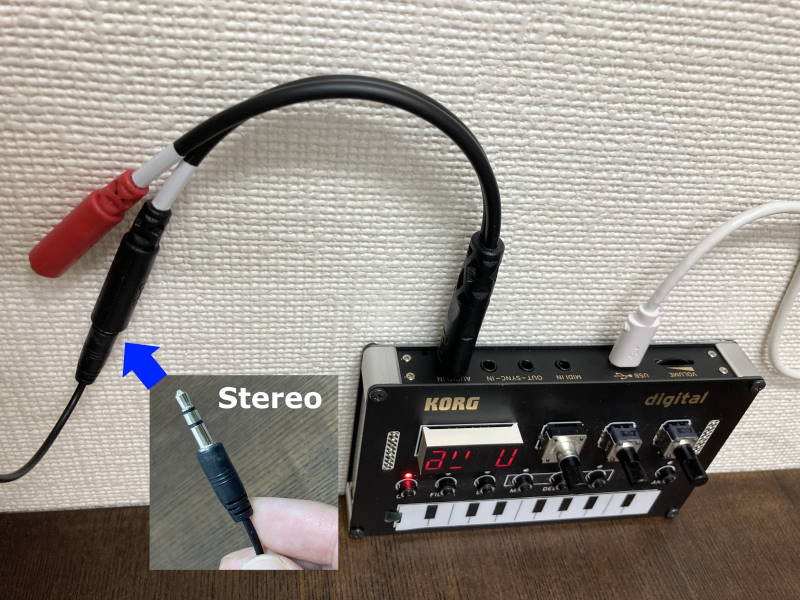

Input microphone audio to the L side of the NTS-1's AUDIO IN only.
For example, use a commercially available Y-shaped cable (LR stereo mini conversion) such as the following.
(Connect the microphone input to the black plug.)

Alternatively, you can use a sound source that shakes the bread to L in a mixer.

3. Play the vocoder
You can use any oscillator you like.
The included oscillator is a SAW synth tone suitable for vocoders.
Select Vocoder(Vocdemo) for MOD.

Vocalize into the microphone while playing the keyboard.

If you are using a dynamic microphone, the input level may be too low, so set the input trim to 0dB in the global parameters of the NTS-1 and increase the gain (dial A) of the Vocoder.

[DOTEC-AUDIO x Nu:Tekt] How to make Custom Effects for NTS-1 is a series of five articles in which DOTEC-AUDIO will explain how to develop custom plug-ins for the NTS-1.

From the very first step, "setting up the development environment," to the actual working effectors with source code, this is a must-see if you're using the NTS-1!

Sample code "Bit crusher" DEMO
